| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ARCHTEX |
| Certification: | REACH, FDA |
| Model Number: | CPVC Compound granules |
| Minimum Order Quantity: | 200kgs |
| Price: | Negotiable |
| Packaging Details: | 220kgs/200kgs iron drum or plastic drum, 1200kgs tons of barrels, liquid bags |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Metric Tons/Metric Ton per month |
| Product Name: | CPVC Compound Granules | Material: | Raw CPVC Material |
|---|---|---|---|
| Appearance: | Transparent Granule | Application: | Plastic |
| Tin Content(%): | 19±0.5 | Sulfur Content(%): | 12±0.5 |
| Color(Pt-Co): | ≤50 | Specific Gravity(25℃,g/cm³): | 1.16-1.19 |
| Refractive Index(25℃): | 1.507-1.511 | Viscosity(25℃,mPa•s): | 20-80 |
| Monomethyl Tin Content(%): | 19.0-29.0 | Trimethyl Tin Content(%): | <0.1 |
| High Light: | Cable Jacket PVC Granules,Flexible PVC Granules,Cable Insulation PVC Compound Granules |
||
Prouct Introduction and Attributes
As a company specialized in PVC (Polyvinyl Chloride) compounds, INPVC has decades of professional experience in manufacturing superior quality PVC seal compounds. We offer seal strip PVC compounds for various industries applications, such as: refrigerator seals, door & window seal, automotive seal, protector seal, weather stripping and trim strip.We have engineered formulations with highly cost-effectiveness however still keeping good quality.
Type : PVC Compound for Cable Insulation.
Composition: PVC resin, stabilizers, plasticizers, fillers, lubricants and additives.
Usage: used as Primary insulation.
Color. : As per customer Request.
Specifications:-
| Grade | UL 80℃ standard cable material | UL 105℃ standard cable material | |||
| Properties | Units/ Terms |
EUL80-K/UL1007 | EUL80-K/UL1015 | EUL105-K/UL1015 | EUL105-K/UL1007 |
Temp Resistance |
℃ | 80 | 80 | 105 | 105 |
Hardness |
Shore A | 89±2A | 89±2A | 88A±2A (45P) | 88A±2A (45P) |
Tensile Strength |
PSI | ≥2000 | ≥1900 | ≥1700 | ≥1750 |
Elongation at break |
% | ≥200 | ≥190 | ≥180 | ≥180 |
Cold bend temp |
℃/4H | -20 | -20 | -20 | -20 |
|
Insulation Resistance |
M•KM | ≥2.5 | ≥2.5 | ≥2.5 | ≥10 |
Burning test |
-- | VW-1 | VW-1 | VW-1 | VW-1 |
Aging temp |
℃ | 113 | 113 | 136 | 136 |
Aging time |
H | 168 | 168 | 168 | 168 |
T.S After Aging |
PSI | ≥2200 | ≥2000 | ≥1900 | ≥1950 |
T.S residual rate |
% | ≥70 | ≥70 | ≥75 | ≥75 |
Elongation at break after aging |
% | ≥160 | ≥170 | ≥130 | ≥135 |
Elongation residual rate |
% | ≥65 | ≥65 | ≥65 | ≥65 |
Special Gravity |
g/cm3 | 1.43±0.02 | 1.43±0.02 | 1.43±0.02 | 1.43±0.02 |
Competitive Advantages
1,All reach SGS and ROHS standard
2. excellent plasticity
3. Good quality & best price
4.we have 20 years of production experience
5.Timely delivery
6..in-line with the EN-71 standards for environmental protection.
7.25kg/bag, MOQ is 1 ton, also can be as your requirement.
We can produce according to your requirement, any color, any hardness and density as your requirement.Quality control: ISO9001,Mach environment protecting requirement: Pass ROHS, lead free. Pass PAHS,Phthalates free. Passed SGS.
We mainly provide calcium zinc stabilizer/lead content stabilizer,titanium dioxide,, ACR, PE wax and other PVC additives. At present, has been supplied to Bangladesh, India, Vietnam, and other countries, most of them are group company. Not only provide long-term product supply, but also technical support. Basically 20-40 containers can export every month. And we have warehouse in all China main port, like Shanghai port, Ningbo port, Qingdao port, Tianjin port, Shenzhen port, that will help us export very convenient Company always adhere to the concept of integrity-based, quality first, timely delivery, thoughtful service, innovative development, high qualit, and continue to provide customers with high-quality products and satisfactory services.

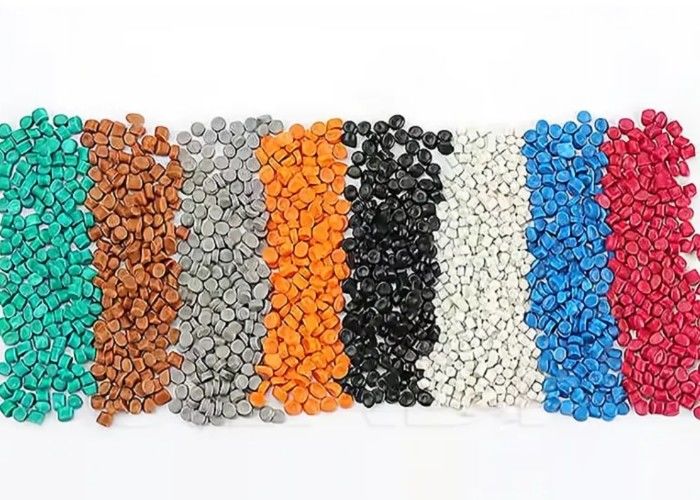

Product Show
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer. Our factory is founded in 2007, we have more than 14 year experience on PVC stabilizer manufacturing.
Q: Can i get some samples?
A: Yes, free samples(5-10 Kg)are available for most of our products, you only need to pay the shipping cost.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What's your payment terms?
A: T/T or Irrevocable L/C.
Q: What documents you provide?
A: Usually, we provide Commercial Invoice, Packing List, Bill of loading, COA, if your markets have any special requirements, let us know.
