Soft PVC Compound Granules For Window Sealing Strip Refrigerator Sealing Strap

Basic Information
Place of Origin: CHINA
Brand Name: ARCHTEX
Certification: REACH, FDA
Model Number: CPVC Compound granules
Minimum Order Quantity: 200kgs
Price: Negotiable
Packaging Details: 220kgs/200kgs iron drum or plastic drum, 1200kgs tons of barrels, liquid bags
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Metric Tons/Metric Ton per month
Detail Information
Product Name: CPVC Compound Granules Material: Raw CPVC Material
Appearance: Transparent Granule Application: Plastic
Tin Content(%): 19±0.5 Sulfur Content(%): 12±0.5
Color(Pt-Co): ≤50 Specific Gravity(25℃,g/cm³): 1.16-1.19
Refractive Index(25℃): 1.507-1.511 Viscosity(25℃,mPa•s): 20-80
Monomethyl Tin Content(%): 19.0-29.0 Trimethyl Tin Content(%): <0.1
High Light:

Sealing Strap PVC Pellets

,

Window Sealing Strip PVC Compound Granules

,

Refrigerator Sealing Strap PVC Compound Granules


Product Description

Soft PVC Granules For Window Sealing Strip Refrigerator Sealing Pvc Compound Pvc Granule For Sealing Strap Pvc Pellet



Product Details




Prouct Introduction and Attributes



As a company specialized in PVC (Polyvinyl Chloride) compounds, INPVC has decades of professional experience in manufacturing superior quality PVC seal compounds. We offer seal strip PVC compounds for various industries applications, such as: refrigerator seals, door & window seal, automotive seal, protector seal, weather stripping and trim strip.We have engineered formulations with highly cost-effectiveness however still keeping good quality.





Type : PVC Compound for Cable Insulation.
Composition: PVC resin, stabilizers, plasticizers, fillers, lubricants and additives.
Usage: used as Primary insulation.
Color. : As per customer Request.
Specifications:-

Grade UL 80 standard cable material UL 105 standard cable material
Properties Units/
Terms
EUL80-K/UL1007 EUL80-K/UL1015 EUL105-K/UL1015 EUL105-K/UL1007

Temp Resistance
80 80 105 105

Hardness
Shore A 89±2A 89±2A 88A±2A (45P) 88A±2A (45P)

Tensile Strength
PSI 2000 ≥1900 ≥1700 ≥1750

Elongation at break
% ≥200 ≥190 ≥180 ≥180

Cold bend temp
/4H -20 -20 -20 -20



Insulation Resistance

M•KM ≥2.5 ≥2.5 ≥2.5 ≥10

Burning test
-- VW-1 VW-1 VW-1 VW-1

Aging temp
113 113 136 136

Aging time
H 168 168 168 168

T.S After Aging
PSI ≥2200 ≥2000 ≥1900 ≥1950

T.S residual rate
% ≥70 ≥70 ≥75 ≥75

Elongation at break after aging
% ≥160 ≥170 ≥130 ≥135

Elongation residual rate
% ≥65 ≥65 ≥65 ≥65

Special Gravity
g/cm3 1.43±0.02 1.43±0.02 1.43±0.02 1.43±0.02

Competitive Advantages

. We are suppliers of raw materials. The general motors, the large electrical components factories and so on are our customers and they cooperate directly.

2. We have ten utility model patents.

3. All raw material can pass CTI, PONY, SGS, UTS ,REACH, ROHS test reports.

4. Customized specification are available.

5. Product packaging and mode of transportation are all fixed.

Package: Usually 25kg net weight in a kraft bag with insider PE bag or other Seaworthy Packing as required.( such as tonnage jumbo bags, carton box and so on.)

Transportation modes: motor, rail, air, sea.

6. We have a complete range of products.

You can choose the PVC compound as below:

According to hardness ( Rigid,Semi-rigid,Soft)

According to function (Insulation,Anti-oil,Anti-cold,High temperature resistance,Wear resistant,Low odor and so on.)

7. Keeping in studying and researching of technology, high quality material, advanced equipment and experienced workers.

8. We have strong R&D ability and quality control ability.

Our company is a professional supplier of PVC compound granules for more than 20 years, integrating research, development,manufacture and trade together with rich experience. We have strong R&D ability and quality control ability.



We mainly provide calcium zinc stabilizer/lead content stabilizer,titanium dioxide,, ACR, PE wax and other PVC additives. At present, has been supplied to Bangladesh, India, Vietnam, and other countries, most of them are group company. Not only provide long-term product supply, but also technical support. Basically 20-40 containers can export every month. And we have warehouse in all China main port, like Shanghai port, Ningbo port, Qingdao port, Tianjin port, Shenzhen port, that will help us export very convenient Company always adhere to the concept of integrity-based, quality first, timely delivery, thoughtful service, innovative development, high qualit, and continue to provide customers with high-quality products and satisfactory services.





Product Show

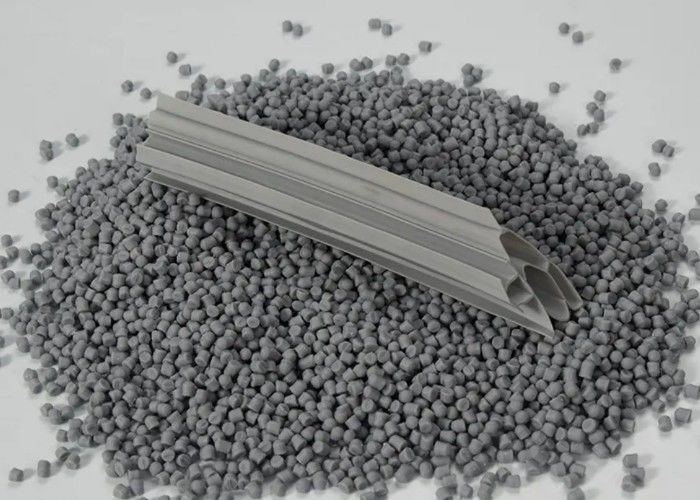

Soft PVC Compound Granules For Window Sealing Strip Refrigerator Sealing Strap 0







FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer. Our factory is founded in 2007, we have more than 14 year experience on PVC stabilizer manufacturing.



Q: Can i get some samples?
A: Yes, free samples(5-10 Kg)are available for most of our products, you only need to pay the shipping cost.



Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to quantity.



Q: What's your payment terms?
A: T/T or Irrevocable L/C.



Q: What documents you provide?
A: Usually, we provide Commercial Invoice, Packing List, Bill of loading, COA, if your markets have any special requirements, let us know.
