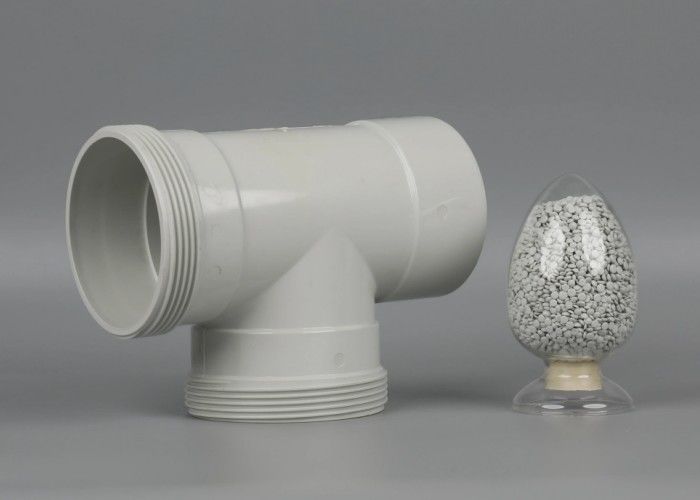

PVC Compound Granules For Injection Pipe Fittings PVC Compound granules for injection pipe fittings

Basic Information
Place of Origin: CHINA
Brand Name: ARCHTEX
Detail Information
Impact Strength: ≥7KJ/m2 Application: Injection Molding
Shape: Granules Elongation: ≥200%
Flammability: UL94 V-2 Size: Customized
Aging Resistance: Good Tensile Strength: ≥20MPa

Product Description

PVC Pellet PVC Resin Material PVC Granules Compounds Rigid Virgin Pvc Compound Granules For Pipe Fittings Tube

Product Description:


1. Product performance

This product is made from multiphase polymers with excellent processing performance as the base material, and is processed with various halogen-free flame retardants. The oxygen index reaches over 40, The volume resistivity reaches more than 1x10 "Ω. m, and the processing performance is excellent. It can be extruded on a common extruder. It does not contain any halogen, lead, cadmium, mercury, Hexavalent chromium (CrVI), polybrominated biphenyls (PPB), and polybrominated diphenyl ethers (PBDE) Harmful substances such as carbon dioxide have been tested by environmental testing companies and meet international environmental standards. This product has excellent mechanical and physical properties, electrical properties, and processing performance. This product has excellent flame retardancy and can pass Class A bundle combustion experiments.

2. Processing technology

1) The product should be dried before use, recommended conditions: 70-80 /4h

2) It is best to use screw extrusion with a compression ratio of 1.25~2.0:1

3) Extrusion temperature

Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Machine head
120℃ 130℃ 135℃ 140℃ 145℃



Technical Parameters:

Property Value
Product Name PVC Compound Granules
Material PVC
Hardness 50-90 Shore A
Impact Strength ≥7KJ/m2
Application Injection Molding
Flammability UL94 V-2
Size Customized
Density 1.3-1.45 G/cm3
Color black,red,yellow,blue,green,white etc.
Aging Resistance Good


PVC Compound Granules are a high performance white color(color can be customized) granules made from custom-formulated PVC PVC Compound For Freezer Seal Customized PVC Granules Magnetic Fridge Door Gasket For Refrigerator. With its temperature resistance of up to 80℃ and 25kg/bag packaging, ARCHTEX PVC Compound Granules offer an ideal solution for all kinds of industrial applications such as wire and cable jacketing, pipe extrusion, and fittings production. The superior quality of ARCHTEX PVC Compound Granules ensures consistent performance and long-term durability for both indoor and outdoor applications. It is also an ideal material for creating custom-made PVC pipe compound granules for various applications, including roofing, flooring, lining, electrical insulation, and waterproofing. With its excellent mechanical properties, ARCHTEX PVC Compound Granules is the perfect choice for manufacturers who want to create high-performance products.


ARCHTEX PVC Compound Granules

We are ARCHTEX, a leading supplier of PVC pipe compound granules. Our PVC granules are made of high-quality PVC material with a hardness of 50-90 Shore A, and a density of 1.3-1.45 G/cm3. The PVC material is UL94 V-2 rated for flammability and available in white. Our PVC granules are ideal for making PVC pipes and other products.

Our PVC pipe compound granules are widely used in the manufacture of pipes, tubes, fittings, and other products. Our products are in high demand due to their superior quality and competitive prices. We offer a wide range of PVC pipe compound granules in different sizes and colors to meet the needs of our customers. If you are looking for a reliable supplier of PVC pipe compound granules, contact us today.


Support and Services:

Technical Support and Service for PVC Compound Granules

We provide technical support and service for PVC Compound Granules from product design, formulation and production to final delivery. Our experienced technical team can provide the following services:

  • Product design and formulation: Our technical team is experienced in designing and formulating PVC Compound Granules to meet specific customer’s requirements.
  • Production: We use advanced production process to manufacture PVC Compound Granules with consistent quality.
  • Delivery: Our experienced logistics team can ensure on-time delivery of PVC Compound Granules with proper package to avoid any damage during transportation.
  • After-sales service: We provide technical support and service for the products even after delivery.

We are committed to providing our customers with the best quality products and service. Please contact us if you have any questions or needs about our PVC Compound Granules.


Packing and Shipping:

PVC Compound Granules Packaging and Shipping:

The PVC Compound Granules are usually packaged in 25 kgs bags and shipped in standard sea containers.

The bags will be clearly labeled with the product name and code, product weight, origin, and the expiration date.

The containers will be loaded with proper care and attention to the safety regulations. The containers will be properly sealed and secured with straps.

We aim to deliver the containers within the agreed time frame to ensure the customer's satisfaction.



Q1. What is PVC Compound Granules?
A1. PVC Compound Granules is a kind of high-quality plastic granules produced by ARCHTEX, a professional manufacturer located in China.

Q2. What kinds of properties does PVC Compound Granules have?
A2. PVC Compound Granules has good mechanical strength, excellent impact strength, good electrical insulation, excellent weathering resistance and good chemical stability.

Q3. What are the applications of PVC Compound Granules?
A3. PVC Compound Granules is widely used in the production of pipes, cables, wires, packaging film and other plastic products.

Q4. Is it safe to use PVC Compound Granules?
A4. Yes, PVC Compound Granules produced by ARCHTEX is safe to use and meets the national standards for environmental protection.

Q5. What is the shelf life of PVC Compound Granules?
A5. PVC Compound Granules produced by ARCHTEX has a shelf life of 3 years when stored in a cool, dry and well-ventilated place.
